Example: Feedback Control

In this tutorial, we will give a brief example of how to use a Particle Filter from ParticleFilters.jl for feedback control.

using ParticleFilters
using Distributions
using StaticArrays
using LinearAlgebra
using Random
using Plots

System Description

The system is a two-dimensional discrete-time double integrator with gaussian process and observation noise. The state at time $k$, $x_k$, is a 4-element vector consisting of the position in two dimensions and the velocity. The dynamics can be represented with the linear difference equation:

\[x_{k+1} = f(x_k, u_k, w_k) = A x_k + B u_k + w_k \text{,}\]

where $w_k$ are independent but identically-distributed zero-mean Gaussian random variables with covariance matrix $W$. $A$ and $B$ are given in the code below.

The measurements are noisy observations of the position generated according to

\[y_{k+1} = h(x_k, u_k, x_{k+1}, v_{k+1}) = C x_{k+1} + v_{k+1} \text{,}\]

where $C$ selects only the position of the model, and $v_k$ are independent identically-distributed zero-mean Gaussian random variables with covariance matrix $V$.

Control Law Description

The control law, will use the mean from the particle filter belief to try to make the state oscillate about the origin, i.e.

\[u = K \hat{x}\]

where $\hat{x}$ is the mean estimate of the state, and

\[K = [-1, -1, 0, 0]\]

It should be noted that, since this system is linear with Gaussian noise, a Kalman Filter would be much better-suited for this case, but we use the system here for its simplicity. In general, particle filters can be used with any nonlinear dynamical systems.

Dynamics model

We begin by defining the dynamics of the system. For more information about defining a model, see the "Models" section of the documentation.

const dt = 0.1; # time step

const A = [1.0 0.0 dt  0.0;
           0.0 1.0 0.0 dt ;
           0.0 0.0 1.0 0.0;
           0.0 0.0 0.0 1.0];

const B = [0.5*dt^2 0.0     ;
           0.0      0.5*dt^2;
           dt       0.0     ;
           0.0      dt      ];

const W = 0.3*Matrix(0.01*Diagonal{Float64}(I, 4)); # Process noise covariance

const V = 0.3*Matrix(Diagonal{Float64}(I, 2)); # Measurement noise covariance

f(x, u, rng) = A*x + B*u + rand(rng, MvNormal(W));
f (generic function with 1 method)

Observation Model

Next, the observation model is defined. $h$ generates an observation (this is only used in the simulation, not in the particle filter), $g$ returns the relative likelyhood of an observation given the previous state, control, and current state.

h(x, rng) = rand(rng, MvNormal(x[1:2], V));

g(x0, u, x, y) = pdf(MvNormal(x[1:2], V), y);
g (generic function with 1 method)

Particle Filter

We can combine the dynamics and observation model to create a particle filter.

N = 1000; # Number of particles

filter = BootstrapFilter(f, g, N);
BasicParticleFilter{ParticleFilters.NormalizedESSConditionalResampler{typeof(low_variance_sample)}, BasicPredictor{typeof(Main.f)}, BasicReweighter{typeof(Main.g)}, ParticleFilters.var"#21#23"{ParticleFilters.var"#33#36", typeof(check_particle_belief)}, ParticleFilters.var"#32#35"{Int64}, Random.TaskLocalRNG}(ParticleFilters.NormalizedESSConditionalResampler{typeof(low_variance_sample)}(ParticleFilters.low_variance_sample, 1000, 0.9), BasicPredictor{typeof(Main.f)}(Main.f), BasicReweighter{typeof(Main.g)}(Main.g), ParticleFilters.var"#21#23"{ParticleFilters.var"#33#36", typeof(check_particle_belief)}(ParticleFilters.var"#33#36"(), ParticleFilters.check_particle_belief), ParticleFilters.var"#32#35"{Int64}(1000), Random.TaskLocalRNG())

Running a Simulation

To run a simulation, first an initial belief and initial state need to be created. The initial beleif will consist of particles selected uniformly from $[-2, 2]^4$.

The simulation consists of a loop in which the control is calculated from the mean of the particle. Then the state is updated with the dynamics and a new measurement is generated. Finally, the filter is used to update the belief based on this new measurement.

Using the update function in this interactive fashion allows the particle filter to be used as an estimator/observer for feedback control.

rng = Random.default_rng();
b = ParticleCollection([4.0*rand(4).-2.0 for i in 1:N]); # initial belief
x = [0.0, 1.0, 1.0, 0.0]; # initial state

@gif for i in 1:100
    local m = mean(b)
    u = [-m[1], -m[2]] # Control law - try to orbit the origin
    global x = f(x, u, rng)
    y = h(x, rng)
    global b = update(filter, b, u, y)

    plt = scatter([p[1] for p in particles(b)], [p[2] for p in particles(b)], color=:black, markersize=2, alpha=sqrt.(weights(b)./weight_sum(b)), label="")
    scatter!(plt, [x[1]], [x[2]], color=:blue, xlim=(-5,5), ylim=(-5,5), label="")
end fps=5

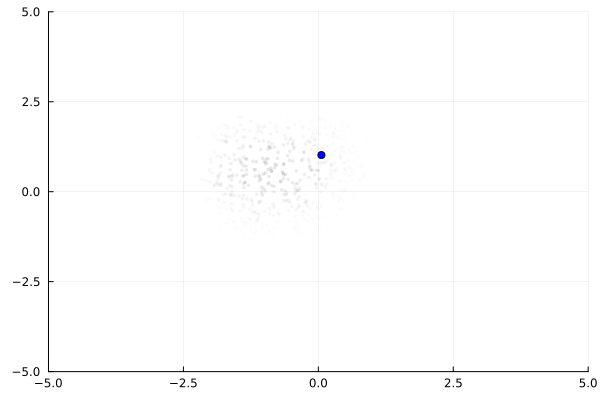

Example block output
